AST3018 Portable Tri Roller Swager

Original Aero Staking Bearing Swaging Tool

Premium Portable Tri-Roller Swaging Tool for Bearing Installation

The AST3018 is a genuine Aero Staking product, designed specifically for bearing installation and bearing retention in demanding aerospace applications. This portable tri-roller swaging tool is engineered to meet the requirements of key specifications such as BAC5435, NAS0331 Method 200, BPS4162, PS17031, CSMP023, SS8743, FH-19, and 03-03-012.

Tool Compatibility & Key Specifications

• For Bearing Number: MS14103-14

• Bearing Groove Pitch Diameter (PD): 1.501

• Bearing Inner Diameter (ID): 0.875

• Standard Outer Envelope of the Tool: Diameter 2.063” OD

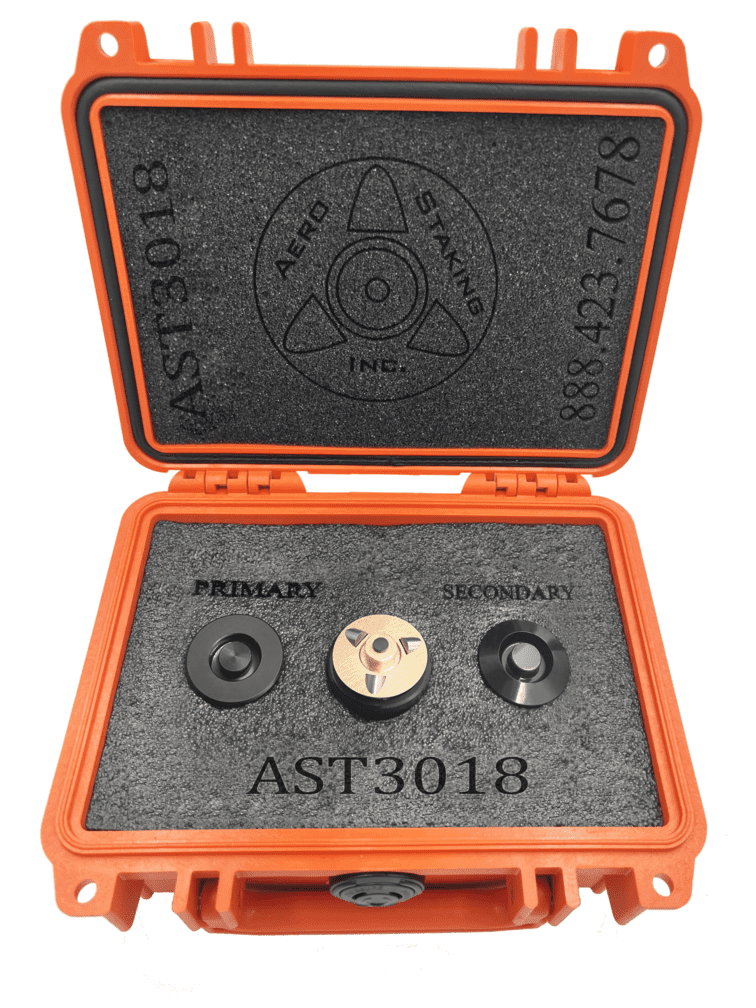

Tool Components

• Flat-Surfaced Locating Fixture (Primary): Used for the first swage

• Angled (Conical) Locating Fixture (Secondary): Used for the second swage

• Roller Swaging Fixture (Head): Provides precise swaging

Optimized for On-Wing Applications & Tight Spaces

The AST3018 portable tri-roller bearing swaging tool is designed for on-wing applications. It easily fits into constrained spaces and is perfect for:

• On-wing bearing repairs

• Bearing installation and retention

• Bearing replacement operations

Lightweight, Mobile & Low-Maintenance

• No power tool required

• Easy to maintain

• Lightweight and mobile design for on-the-go use

• No weak links, ensuring reliability in field applications

Equipment Required: NO POWER TOOL NEEDED

The AST3018 tool can be operated without the need for any power tools, making it ideal for quick and efficient bearing installation, especially in the field.
