Portable Swaging Tool Operating Instructions

For Portable Swaging Tool Operating Instructions reach out to us:
Phone: 888.423.7678
E-mail: info@aerostaking.com

AST 3003

Original Aero Staking Portable Tri-roller Swaging Tools

Standard portable tri-roller swaging tools are for bearing installation in open spaces, with no tool maneuverability limitations. If you have any obstacles around the bearing, such as close walls, tabs, counterbores, wide housing, oversized chamfers, etc., please let us know before you order a standard portable tri-roller swaging tool.

AST3003 is a genuine Aero Staking product. portable tri-roller swaging tool meets the requirements for bearing installation and retention of main specifications such as BAC5435, NAS0331 Method 200, BPS4162, PS17031, CSMP023, SS8743, FH-19, 03-03-012

For Bearing Number: MS14101-4

Bearing Groove Pitch Diameter (PD): .594

Bearing Inner Diameter (ID): .250

Standard Outer Envelope of the Tool: Dia 1.250” OD.

Description of the Tool:

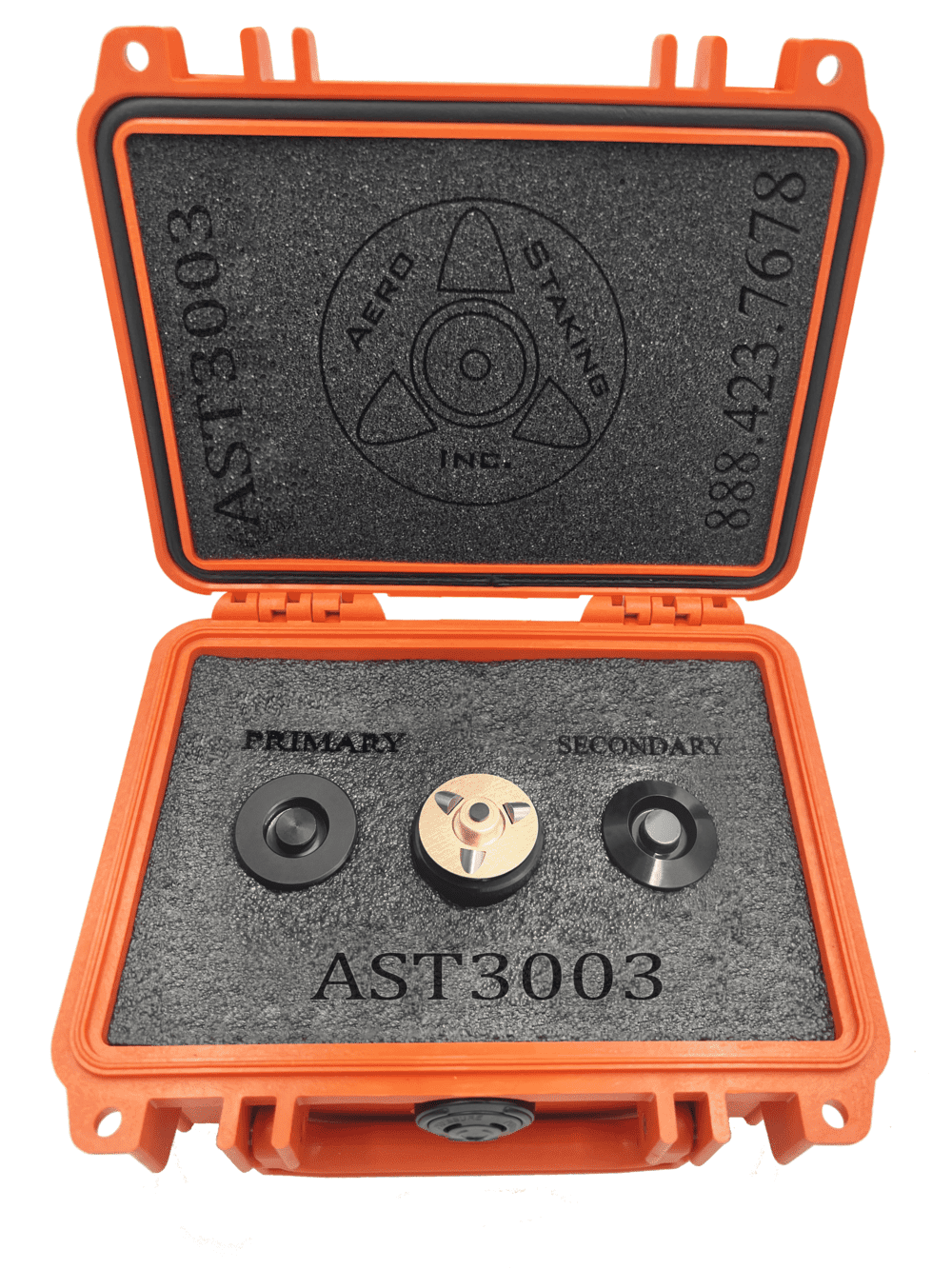

The handheld Tri-Roller Swaging Tool is made of Aerospace Quality, treated, and coated tool steel; it consists of the following:

The flat-surfaced locating fixture (primary) – used for the first swage

Angled (conical) surfaced locating fixture (secondary) – used for the second swage Roller Swaging Fixture (head)

This tool is designed for " on-wing " applications and easily fits constrained spaces. The portable tri-roller bearing swaging tool is light and mobile, easy to maintain, and has no weak links. It is used primarily for on-wing repairs, bearing retention, installation, and bearing replacement operations.

Equipment Required: NO POWER TOOL NEEDED

Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Additional Tools For This Bearing
