Portable Swaging Tool Operating Instructions

For Portable Swaging Tool Operating Instructions reach out to us:
Phone: 888.423.7678
E-mail: info@aerostaking.com

AST 3000

Original Aero Staking Bearing Tools

For Bearing Number: MS14101-3

Bearing Groove Pitch Diameter (PD): .500

Bearing Inner Diameter (ID): .1900

Standard Outer Envelope of the Tool: Dia 1.250” OD.

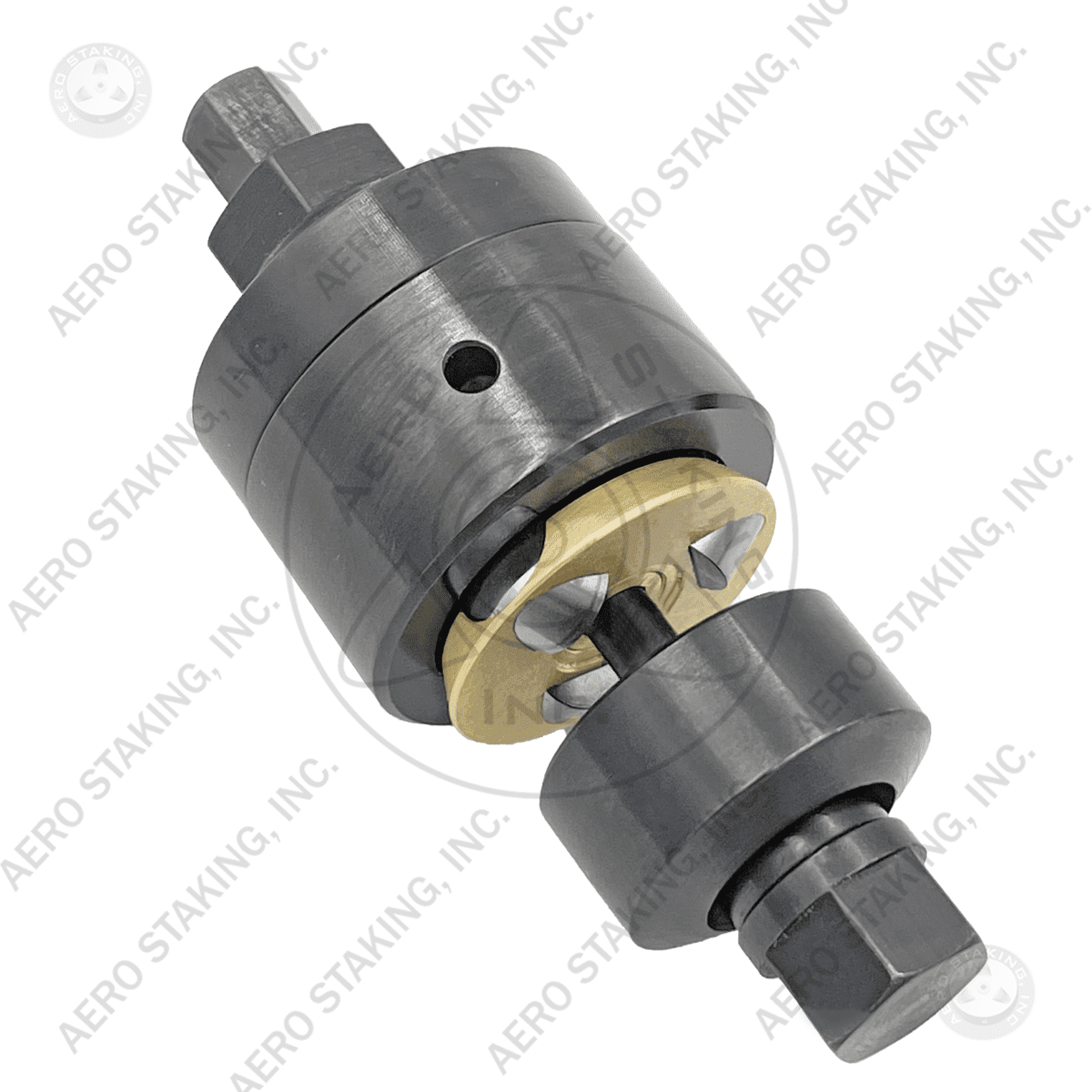

Description of the Tool:

The handheld Tri-Roller Swaging Tool is made of Aerospace Quality, treated, and coated tool steel; it consists of the following:

  • The flat-surfaced locating fixture (primary) – used for the first swage
  • Angled (conical) surfaced locating fixture (secondary) – used for the second swage
  • Roller Swaging Fixture (head)

This tool is designed for ” on-wing ” applications and easily fits constrained spaces. The portable tri-roller bearing swaging tool is light and mobile, easy to maintain, and has no weak links. It is used primarily for on-wing repairs, bearing retention, installation, and bearing replacement operations.

Equipment Required:

NO POWER TOOL NEEDED

Additional Tools For This Bearing

  • Icon 1
    ASC4101-3
  • Icon 2
    ASIR4101-3
  • Icon 3
    ASPL4101-3
