Name: AST 3007
Availability: InStock

Original Aero Staking Portable Tri Roller Swaging Tools

AST3007 is a genuine Aero Staking product. Portable tri-roller swaging tool meets the requirements for bearing installation and retention of main specifications such as BAC5435, NAS0331 Method 200, BPS4162, PS17031, CSMP023, SS8743, FH-19, 03-03-012

For Bearing Number: MS14101-7 and MS14103-7A

Bearing Groove Pitch Diameter (PD): .806

Bearing Inner Diameter (ID): .4375

Standard Outer Envelope of the Tool: Dia 1.375” OD.

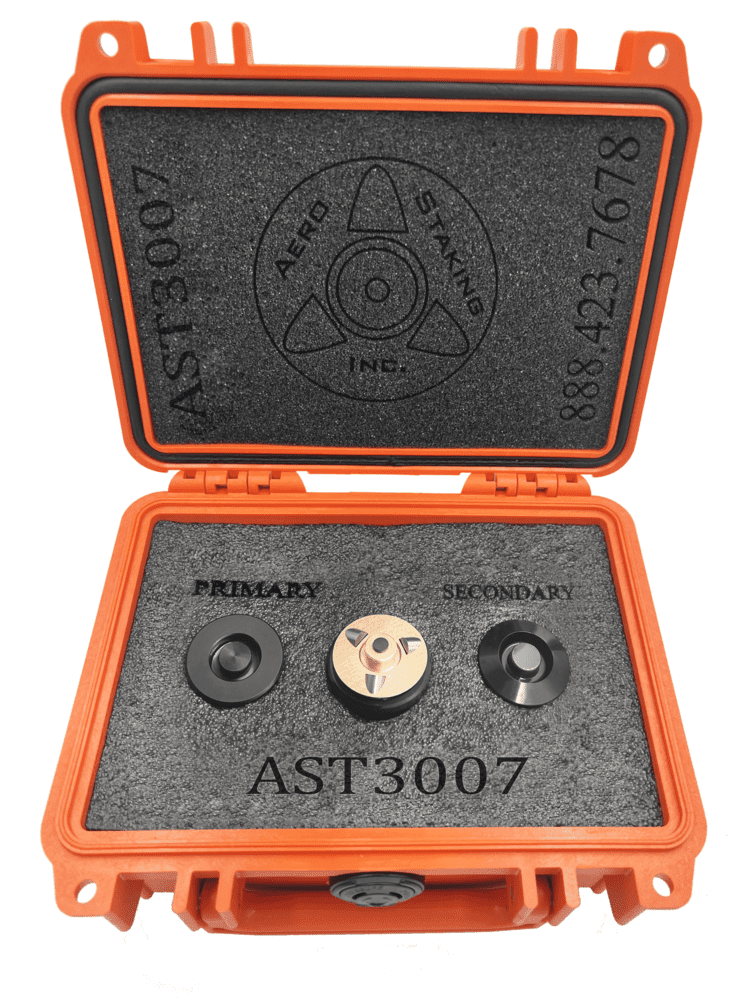

Description of the Tool:

The handheld Tri-Roller Swaging Tool is made of Aerospace Quality, treated, and coated tool steel; it consists of the following:

The flat-surfaced locating fixture (primary) – used for the first swage
Angled (conical) surfaced locating fixture (secondary) – used for the second swage
Roller Swaging Fixture (head)

This tool is designed for ” on-wing ” applications and easily fits constrained spaces. The portable tri-roller bearing swaging tool is light and mobile, easy to maintain, and has no weak links. It is used primarily for on-wing repairs, bearing retention, installation, and bearing replacement operations.

Equipment Required: NO POWER TOOL NEEDED

REQUEST QUOTE
