Drill Press Swaging Tool Operating Instructions

1) Install tri-roller swaging tool (1) into drill press chuck or vertical milling machine.
2) Adjust spindle speed - recommend approximately 60-100 rpm for initial pieces (Note: This can later be increased up to 250 rpm, once operator proficiency has been developed).
3) Install bearing into housing (4) per the drawing specification.

Operating instructions

Figure 1
Figure 2

Additional Tools For This Bearing

  • Icon 1
    ASC4101-5 DP
  • Icon 2
    ASIR4101-5 DP
  • Icon 3
    ASP4101-5

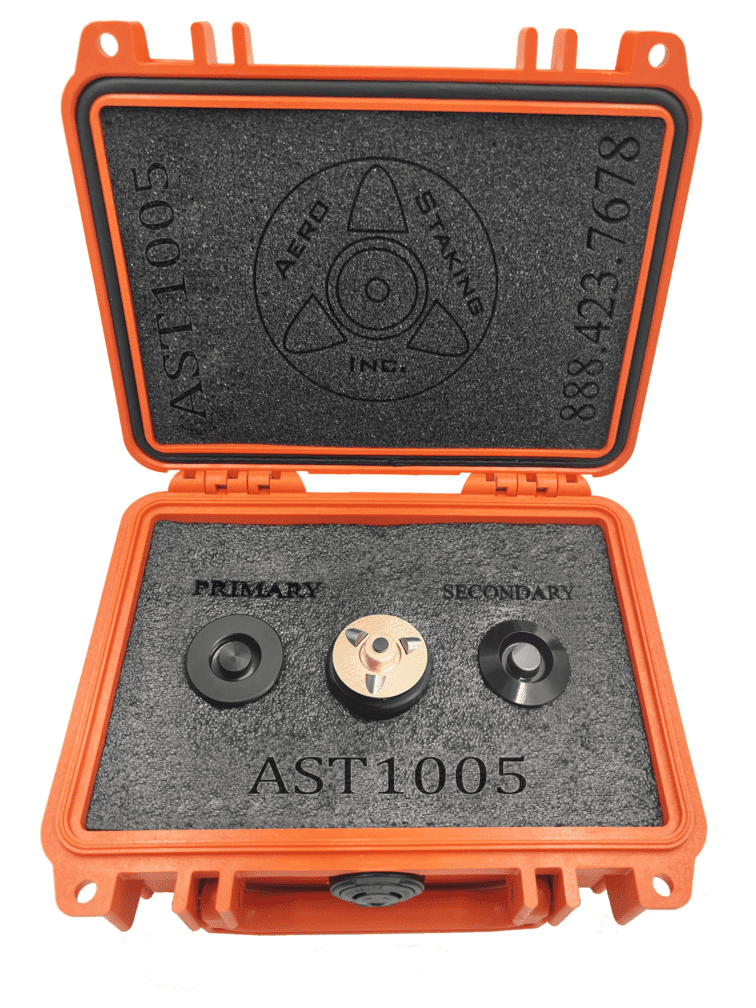

AST1005

Original Aero Staking Bearing Swaging Tools

For Bearing Number: MS14101-5

Bearing Groove Pitch Diameter (PD): .650

Bearing Inner Diameter (ID): .3125

Standard Outer Envelope of the Tool: Dia 1.375” OD.

Description of the Tool:

The Drill Press Swaging Tool is made of Aerospace Quality, treated, and coated tool steel; it consists of the following:

  • The flat-surfaced locating fixture (primary) – used for the first swage
  • Angled (conical) surfaced locating fixture (secondary) – used for the second swage
  • Roller Swaging Fixture (head)

This tool is used primarily for small and large batch production, bearing retention, installation, and bearing replacement operations.

Equipment Required:

  • Standard knee mill, drill press, manual or CNC milling machine tool features ½ Dia shank
